A modern strobe with an integrated position light and a dark appearance. The position light has a dynamic start-up, making it unique. After use, the flashlight automatically switches back to the position light and repeats the dynamic start-up.
The flashlight is amber/orange. It features 13 different patterns and can both synchronize and alternate (flashing alternately). It also has a day and night mode, which gives the flashlight an R65 certification and Class 2 rating.
All of this is housed in a sturdy aluminum housing with a dark lens. The connection cable is 2 meters long, making installation even easier.
Wiring diagram:
- Black, ground
- Blue, position light plus
- Red, flash plus
- Yellow, Sync/pattern change (yellow to plus)
- Green, night mode (white to plus)
- White, Alternating (white to plus)

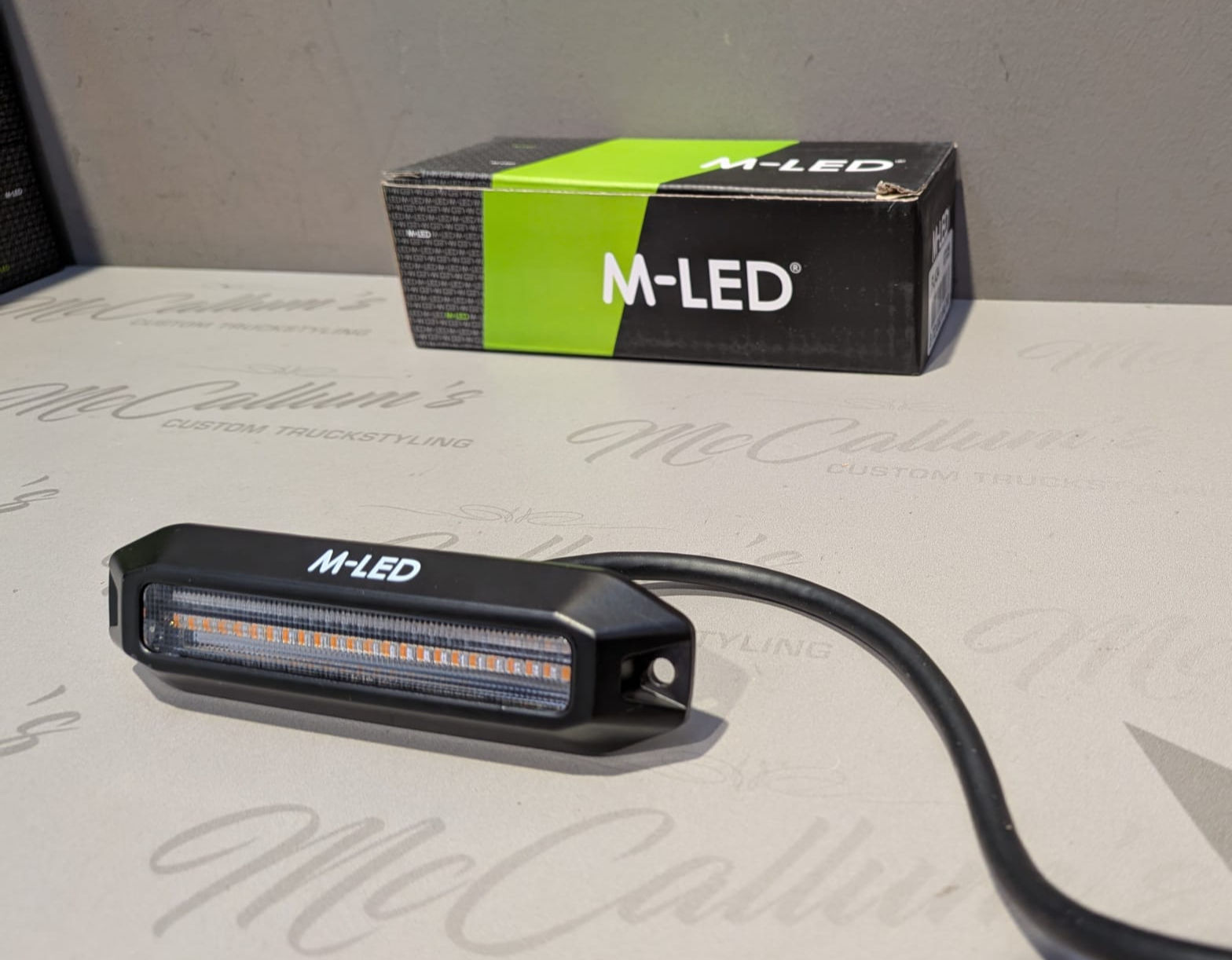

M-LED Dynamic strobe with red position light
Length (cm): 11.2
Height (cm): 3.1
Depth (cm): 1.1
Weight (gr): 124
Housing material: Aluminum
Lens material: PC
Tension: 10-32 VDC
Bolt spacing / bolt size (cm): 10.2
Number of wire cores: 6
Cable Length (cm): 200 cm
Certification: ECE R10 R65 XA2 class2, R148
IP rating: IP68
Position light function: Yes
Number of patterns: 13
Manufacturer article number: EAN 8721302890749
