The EPIX14+ Work Strobe is the work light ramp that gives a modern look and has the performance to meet all situations. With its impressive 120 W, this ramp provides a working light with a range of 119m at 1 lux and a wide 120° light pattern so you get maximum light over a large area. With 7,300 actual lumens and a color temperature of 5000K, it provides strong and natural lighting that facilitates work in all conditions. Self-developed smart mounts ensure mounting pretty much wherever and however you want on the vehicle.



Position light

The ramp has the Epix series specially designed reflectors with dynamic lighting of the position light, which is also fully integrated into the reflector. The color of the position light can also be selected between yellow/orange and red, which is also approved.



Flash light

The Epix14+ Work Strobe is equipped with 10 different flash light patterns, one of which is ECE R65 approved. By simply connecting two units together, you can get both synchronous and asynchronous flash patterns between them. Use your Epix14+ Work Strobe LED ramp as a work light or reversing light (not R23 approved); the strobe turns off when switched on and then starts with your previously selected flash pattern immediately when you then turn off the working light again.



Characteristics and technical data 14 inch:

  • Position light with unique dynamic ignition, integrated in the reflector
  • E-marked ECE R148 (R1, SM1), R65 and R10 (EMC rated)
  • Selectable position light in red or yellow/orange
  • 120° diffuse light pattern (wide light)
  • Range: 119 m (1 lux)
  • 9,800 lumens (theoretical), 7,300 lumens (actual)
  • Color temperature 5000K (Neutral white)
  • 120 W (8 x 15 W LEDs)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side reflective optics
  • Pressure equalization membrane
  • Electronic heat management
  • DT connector (supplied)
  • 7.1A at 12V (3.6A in eco mode) and 3.5A at 24V (1.7A in eco mode)



Included:

  • EPIX14+ Work Strobe LED Ramp
  • Bolts and screws to attach the ramp to the appropriate surface
  • Mounting details for gable mounting
  • Mounting details for rear mounting, standing/hanging
  • DT connector 6-pin
  •

Dimensions & weight (excl. brackets):

  • Width: 357 mm
  • Height: 43 mm
  • Depth: 61 mm
  • Weight: 1.2 kg

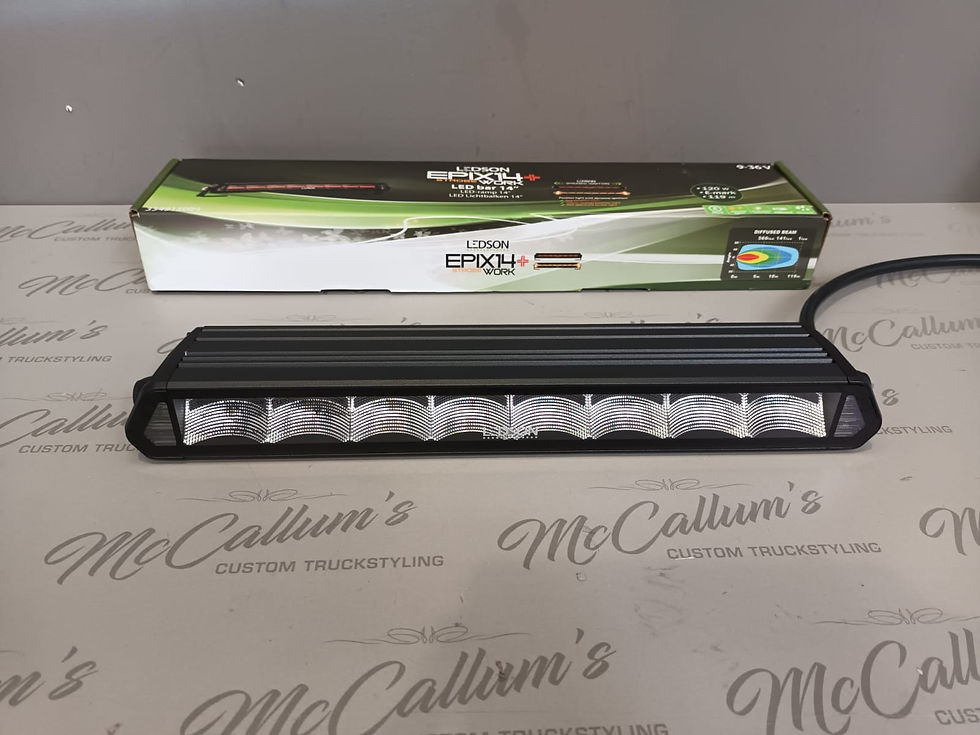

Ledson Epix +Work Strobe

£165.00Price
Excluding VAT
