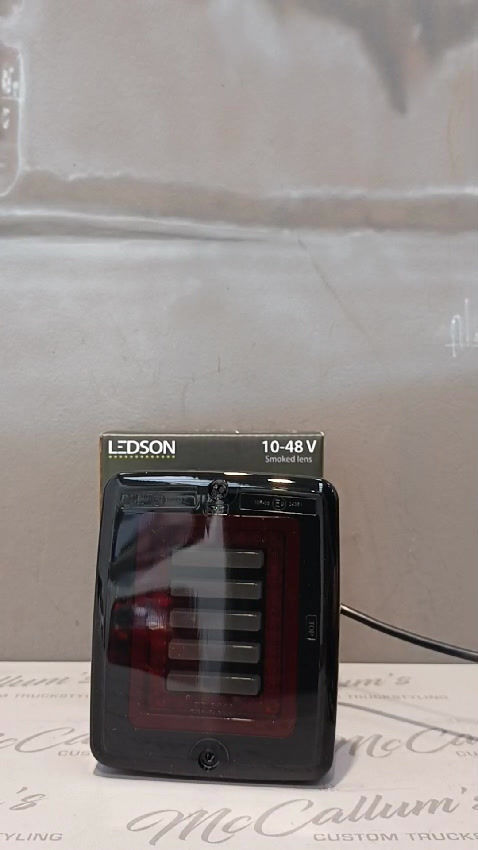

Classic rear light in a modern design with three functions: rear light, brake light and indicators. Can be connected in series for dynamic (flowing) blinkers with up to 4 lights per side. Can be mounted vertically or horizontally.
See instructions for Breeze here.
Specifications:
Smoked glass
ECE R148 (approved for all functions)
A total of 162 LEDs
IP67 rated (waterproof and dustproof)
Voltage: 10-48V
Measure:
Width: 110 mm
Height: 133 mm
Depth: 28 mm
Cable: 2.5 m
Hole distance: 115 mm
Synchronized turn signals: To make all turn signals on the same side flash at the same time, connect their respective yellow wires on the relevant side.
Dynamic turn signal: To get dynamic (running) turn signal, connect the yellow wire from the innermost bulb to the signal wire from your existing turn signal relay. Then connect the green wire from the innermost bulb to the yellow wire on the bulb next to the first and continue this pattern from the innermost to the outermost bulbs.
